Product Specification

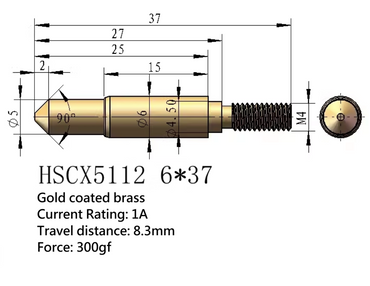

Model No.: HSCX5112
Dimensions: Ø6 × 37 mm
Thread Type: M4 External Thread
Material: Gold-Coated Brass (Gold coated brass)
Tip Type: 90° Cone Tip

Electrical Characteristics:

• Rated Current: 1 A

• Contact Resistance: ≤ 50 mΩ (typical)

• Insulation Resistance: ≥ 100 MΩ @ 100 V DC

Mechanical Characteristics:

• Full Travel Distance: 8.3 mm

• Spring Force: 300 gf (approx.)

• Tip Angle: 90°

• Front Diameter: Ø5.00 ±0.03 mm

• Body Diameter: Ø6.00 ±0.03 mm

• Thread: M4 × 0.7

• Total Length: 37.00 ±0.20 mm

• Dimensional Tolerance: ±0.15 ~ ±0.20 mm

Features:

• Precision-machined brass body with gold coating for excellent conductivity

• Sharp 90° conical tip suitable for piercing or precise contact applications

• High spring force (300 gf) ensures stable and reliable electrical connection

• M4 threaded base allows firm and repeatable installation

• Commonly used for test probes, pogo pin fixtures, and electrical contact assemblies
