Product Specification

Part No.: A1661
Material: Brass
Surface Finish: Gold Plated

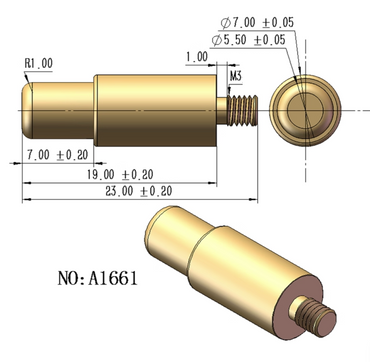

Dimensions:

• Total Length: 23.00 ± 0.20 mm

• Main Body Diameter: Ø7.00 ± 0.05 mm

• Front Section Diameter: Ø5.50 ± 0.05 mm

• Front Section Length: 7.00 ± 0.20 mm

• Threaded Section Length: 4.00 mm (approx.)

• Thread Type: M3 External Thread

• Chamfer/Relief Groove: 1.00 mm

• End Radius: R1.00

Tolerance: ±0.20 mm (unless otherwise specified)
Application: Precision connector pin / conductive post / positioning stud

Features:

• High conductivity brass base material

• Gold plating for corrosion resistance and stable electrical contact

• Precision-machined dimensions with tight tolerance

• Suitable for mechanical or electrical assembly requiring M3 threaded fixing
